Surge protective device module (SPD-M) is an onboard lightning protection module that integrates functions, such as thermal protection, overvoltage protection, and remote signaling, and others. A single module can meet common-mode, differential-mode or full-mode protection requirements.SPD-M, an integrated solution, can simplify the design and selection of surge protection modules for users, and is suitable for surge protection of low-voltage AC or DC power supply equipment. Surge protective device module (SPD-M) has the characteristics of small board space, high level of integration, and complete protection functions and solutions.
Surge Protective Device (SPD)(29)
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.
SPD for Low-voltage Power Systems(18)
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.
SPD for PV System(4)
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.
SPD for Outdoor Lighting(6)
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.
SPD for Signaling Networks(1)
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.
Max. Continuous Operating Voltage (Uc): 150 ~ 680 VAC
Impulse Discharge Current (Iimp)(10/350 μs): 5 ~ 12.5 kA
Nominal Discharge Current (In)(8/20 μs): 25 kA
Max. Discharge Current (Imax)(8/20 μs): 50 kA
Protection Mode: 4+0 (L / N - PE)
2024-2026 Year Version.
When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.
SPD SD25TxxxL405_SETsafe & SETfuse.pdf
2021-2023 Year Version.
While purchasing 2021-2023 version products, please refer to the data below.
SPD SD25TxxxL405_SETsafe & SETfuse.pdf
Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.
Xiamen SET Electronics Co., Ltd.
● For AC Three-Phase System
● Class I and Class II SPD
● Over-Temperature Protection, Over-Current Protection, High Reliability
● RoHS & REACH Compliant
Din-Rail
Screw
You can download the 3D diagram of product structure to help you improve design efficiency to create more great products.
Design Standards & Agency Approvals
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com
UL (America):
Standards: UL 1449
File NO.: E322662
UL_SPD_SD25T_SETsafe & SETfuse.pdf
cUL (Canada):
Standards: CSA C22.2 No. 269
File NO.: E322662
TUV (Germany):
Standards: EN 61643-11
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
Incoming Quality Control (IQC):
Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..
Process:
Online Inspection and Function Test 100%, etc..
In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..
Final Quality Control (FQC):
AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..
Reliability Test:
AQL Sampling Test.
Outgoing Quality Control (OQC):
Packaging, Labeling, Quantity Inspection, etc..
Agency Information:
Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..
Quality Management System:
TUV Approved and Issued Certificate.
SETsafe
Din-rail Surge Protective Device
Surge protective devices (SPDs) are designed to meet requirements for UL 1449 Forth Edition and IEC/EN 61643-11. They are DIN-rail mountable featuring a fail-safe protection, visual indicator and remote signal contact. It has a good environmental adaptability and meets the requirements of high reliability in important field.

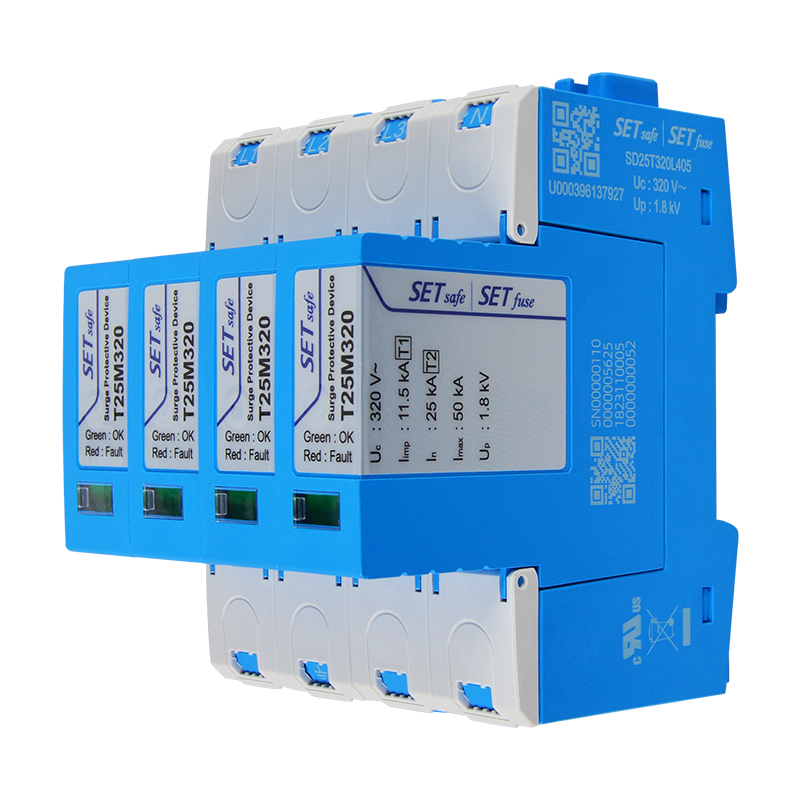

SD25TxxxL405, T1+T2
