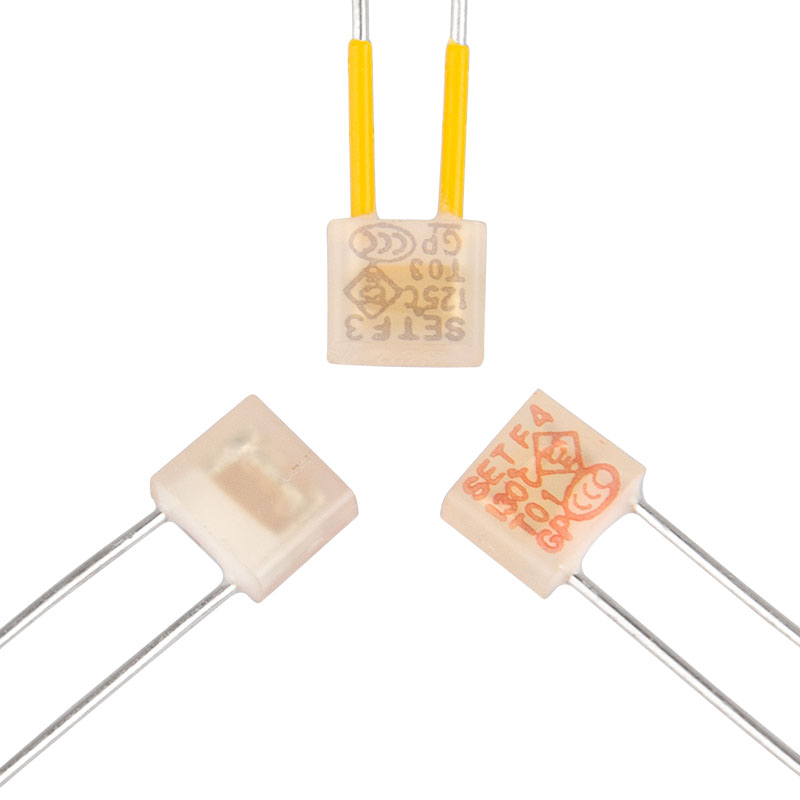

DC-Alloy Thermal-Link / DC-Alloy Thermal Cutoff (DC-ATCO) is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment and electric vehicle. DC-ATCO is mainly consist of Thermal Element, Flux Resin, Case, Sealant and Lead Wires. Normally, thermal element is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the fusing temp. of DC-ATCO, the thermal element melts and quickly retracts to the two lead wire ends with the aid of the flux resin and disconnects the circuit completely.

SETsafe | SETfuse DC-Alloy Thermal-Link is classified into Axial and Radial shapes, with Rated Current 10 A to 200 A, Rated Functioning Temp. 76 °C to 230 °C, with UL, cUL , Approvals and RoHS, REACH compliant.

● Transparent Plastic Case

● Non-Resettable

● High Accuracy of Functioning Temp.

● RoHS & REACH Compliant

Through Hole

Radial

● Lamps

● Switched-Mode Power Supplies

● Home Electrical Appliances

● Transformers

● Motors

● Batteries

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
