Reverse Stand-Off Voltage (VR): 5.8 ~ 512 V
Rated Random Recurring Peak Impulse Power Dissipation (PPPM)(10/1000µs): 600 W
2024-2026 Year Version.
When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.
TVS P6SMB(SMD)_SETsafe & SETfuse.pdf
2021-2023 Year Version.
While purchasing 2021-2023 version products, please refer to the data below.
TVS P6SMB(SMD)_SETsafe & SETfuse.pdf
Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.
Xiamen SET Electronics Co., Ltd.
● Low incremental surge resistance
● Excellent clamping capability
● Low profile package with built-in strain relief
● Typical IR less than 1.0 μA above 12 V
● 600 W peak pulse power capability with a 10/1000 μS Waveform, repetition rate (duty cycle): 0.01%
● For surface mounted applications to optimize board space
● Typical failure mode is short from over-specified voltage or current
● IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
● EFT protection of data lines in accordance with IEC 61000-4-4
● Very fast response time
● Glass passivated chip junction
● High temperature to reflow soldering guaranteed: 260 °C/30sec
● VBR@TJ=VBR@25°Cx(1+αT x(TJ-25)) (αT: Temperature Coefficient, typical value is 0.1%)
● Plastic package is flammability rated V-0 per Underwriters Laboratories
● Meet MSL level1, per J-STD-020
● Matte tin lead–free plated
● Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
● Halogen free and RoHS compliant
Surface Mount
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
Incoming Quality Control (IQC):
Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..
Process:
Online Inspection and Function Test 100%, etc..
In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..
Final Quality Control (FQC):
AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..
Reliability Test:
AQL Sampling Test.
Outgoing Quality Control (OQC):
Packaging, Labeling, Quantity Inspection, etc..
Quality Management System:
TUV Approved and Issued Certificate.
Download the certificate, please click the link.
https://www.setsafe.com/Support/Management-System/ISO-Certificate-Download.html
SET
TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.

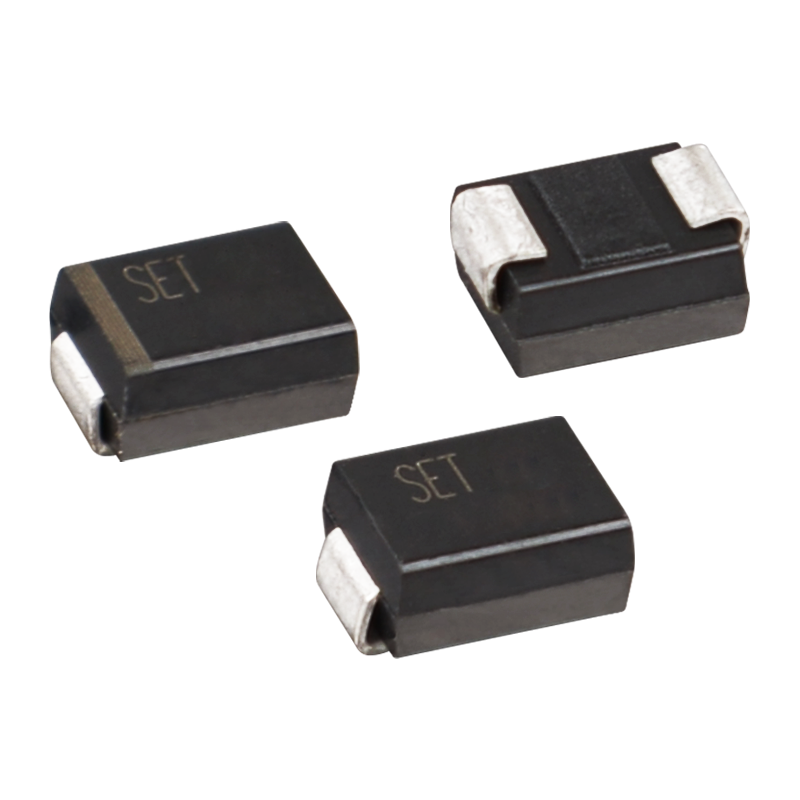

P6SMB series
