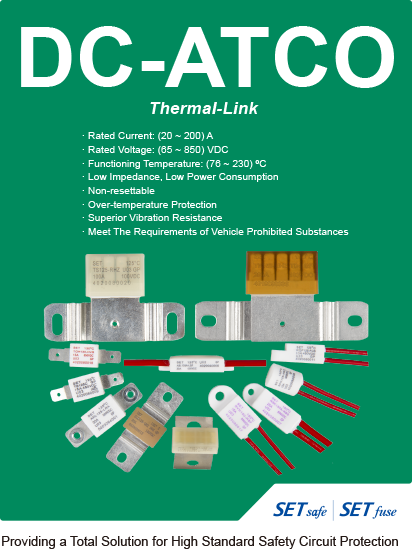

The Direct Current Thermal-Link (Alloy Type) is defined as a non-resettable protective device functioning only once. It is widely used for over-temperature protection of electrical equipment and electric vehicles. The DC-ATCO primarily consists of a low melting point Thermal Element, Flux Resin, Case, Sealant, and Lead Wires. Normally, the Thermal Element is joined to the two lead wires. When the temperature reaches the fusing temperature of the Direct Current Thermal-Link (Alloy Type), the Thermal Element melts and quickly retracts to the two lead wire ends with the aid of the flux resin, disconnecting the circuit completely.
The SETsafe | SETfuse Direct Current Thermal-Link (Alloy Type) is classified into Axial and Radial shapes, with a Rated Functioning Temperature ranging from 76 °C to 230 °C, Rated Current from 10 A to 200 A, Rated Voltage from 60 VDC to 850 VDC, and it holds CCC CB Approvals. It is also RoHS and REACH compliant.
A non-resettable device incorporating a THERMAL ELEMENT which will open a circuit once only when exposed for a sufficient length of time to a temperature in excess of that for which it has been designed.
Alloy Type Thermal-Link, Alloy is the thermal element.
Direct Current Alloy Thermal-Link.
Rated Functioning Temp.
The temperature of the Alloy Thermal-Link which causes it to change the state of conductivity with a detection current up to 10 mA as the only load.
Tolerance: Tf 0/-10 °C (GB/T 9816, EN 60691, K60691).
Tolerance: Tf ± 7 °C (J60691).
The temperature of the Alloy Thermal-Link which causes it to change its state of conductivity is measured with silicone oil bath in which the temperature is increased at the rate of 0.5 °C to 1 °C / minute, with a detection
current up to 10 mA as the only load.
The Maximum temperature at which a Thermal-Link will not change its state of conductivity when conducting rated current for 168 hours.
Maximum Temp. Limit
The temperature of the Thermal-Link stated by the manufacturer, up to which the mechanical and electrical properties of the Thermal-Link having changed its state of conductivity, will not be impaired for a given time.
Minimum Breaking Current
The minimum current that Fuse requires after the Alloy of Thermal-Link opens in the circuit.
The current used to classify a Alloy Thermal-Link, which is the Maximum current that Alloy Thermal-Link allows to carry and is able to cut off the circuit safely.
The voltage used to classify a Alloy Thermal-Link, which is the Maximum voltage that Alloy Thermal-Link allows to carry and is able to cut off the circuit safely.
● Battery Cooling Systems
● Pre-charged Resistors
● Automotive Air-Conditioners
● EV Battery Modules
● Power Supplies
● Automatic Electronics
● High Power Solid State Relays
SETsafe | SETfuse Quality Policy
Provide Industry-Leading Products
Select critical raw materials: Must be from a manufacturer with quality management system (ISO9001, IATF16949) certification.
1. When atmosphere pressure is from 80 kPa to 106 kPa, the related altitude shall be from +2000 m to - 500 m.
2. Operating voltage less than rated voltage of DC-ATCO, operating current less than rated current of DC-ATCO.
3. Do not touch the DC-ATCO body or lead wires directly when power is on, to avoid burn or electric shock.
DC-ATCO is a non-repairable product. For safety sake, it shall be replaced by an equivalent DC-ATCO from the same
manufacturer, and mounted in the same way.
Do not store the DC-ATCO at the high temp., high humidity or corrosive gas environment. The product shall be stored at 25 ± 5 °C and ≤ 70% RH, avoid direct sunlight and shall use them up within 1 year after receiving the goods.
Make Sure the Temp. of Installation Position
1. It is recommended that a dummy DC-ATCO with inbuilt thermo-couple shall be used to determine the proper temp.
2. The terminal product should be tested to ensure that potential abnormal conditions do not cause ambient temp. to exceed the Tm of the DC-ATCO.
3. Mount the DC-ATCO at the location where Temp. rises evenly.
Installation position of mechanical performance requirements.
1. Ensure that the electrode lead is long enough, and avoid actions such as press, tensile or twist.
2. The seal or body of DC-ATCO must not be damaged, burned or over heated.
Suitable for the stranded conductor diameter (d) of DC-ATCO ≥1.2 mm.
1. Choose small resistivity riveting material and be riveted.
2. A flexible lead or lead with low resistance should be used to rivet the DC-ATCO.
3. Contact resistance should be minimal, Large contact resistance will lead to higher temp., DC-ATCO Functioning in advance.
1. Soldering should be carried out according to Table -1.
2. The thermal element of DC-ATCO is thermal element with low melting point, which is jointed with DC-ATCO electrode lead. Improper soldering operation (too high soldering temp., too long soldering time etc.) may transfer more heat to the thermal element and DC-ATCO may open in advance.
3. When soldering conditions are more severe than those listed in Table -1, a heat sink fixture should be used between soldering point and DC-ATCO body.
4. When soldering, please do not pull / push or twist DC-ATCO body or stranded conductor.
5. After soldering, let it naturally cool for longer than 20 sec. During cooling, never move the DC-ATCO body or stranded conductor.
