LV Fuses for EV Charging

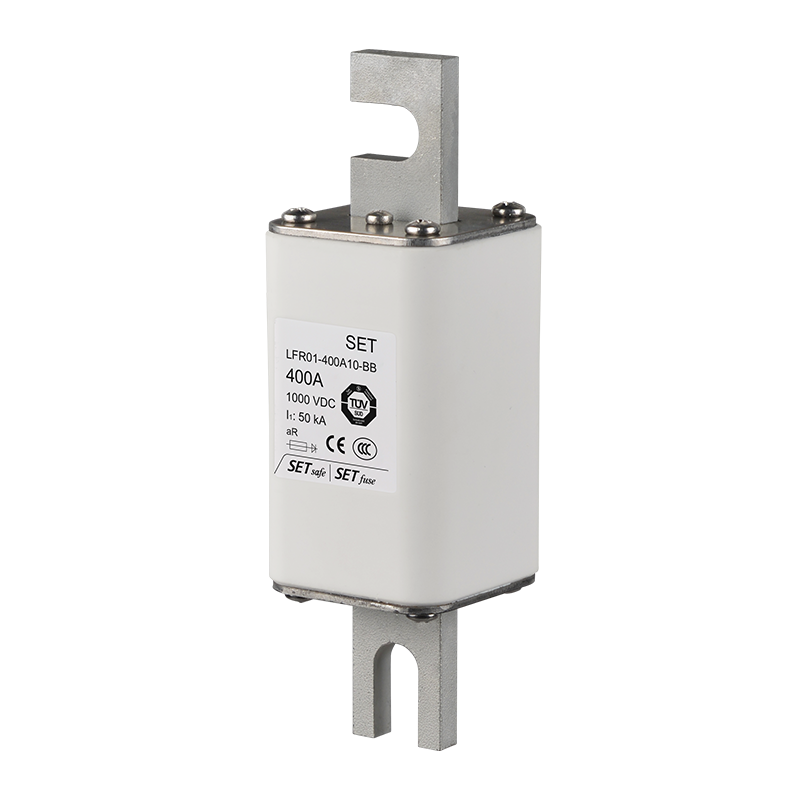

LFR01-xxxA10-xx series×

LFR01-xxxA10-xx series

Rated Voltage (Un): 1000 VDC / 800 VDC

Rated Current (In): 50 ~ 450 A

Breaking Capacity (I1): 50 kA

Utilization Category: aR

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Customization
Quality Assurance
Brand
Tradename
Overview
About SETsafe | SETfuse

Datasheet

2024-2026 Year Version.

LV Fuses_LFR01-xxxA10-xx(1000 VDC 800VDC, 50~450 A)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 1000 VDC(50 A~400 A) / 800 VDC(450 A)

● Breaking Capacity: 50 kA @ 1000 VDC(50 A~400 A) / 50 kA @ 800 VDC(450 A)

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR

● Good Current Limiting Capability

● Body Size: 79 x 43 x 43 mm (01#)

● Indicator Optional

● RoHS and REACH Compliant, Pb Free

Mounting Style

Bolt Blade, Flat Bolt, Bolt Tag, Flush End

Termination Style

Bolt down

Applications

● Battery Energy Storage System (BESS)

● Power Conversion Systems

● DC Common Bus Systems

● DC Charging Pile

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

CCC

Standards: GB/T 9364.4

File No.: 2024010308686288

CCC_LFR01_SETsafe & SETfuse.pdf

TUV

Standards: EN IEC 60269-4

File No.: B 107221 0010

TUV_LFR01_SETsafe & SETfuse.pdf

Standards: EN IEC 60269-4

File No.: N8A 107221 0011

CE_LFR01_SETsafe & SETfuse.pdf

Customization

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

Quality Assurance

High Quality, High Reliability.

Brand

SETsafe | SETfuse

Tradename

SET

Overview

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.
