LV Fuses for ESS (Energy Storage System)

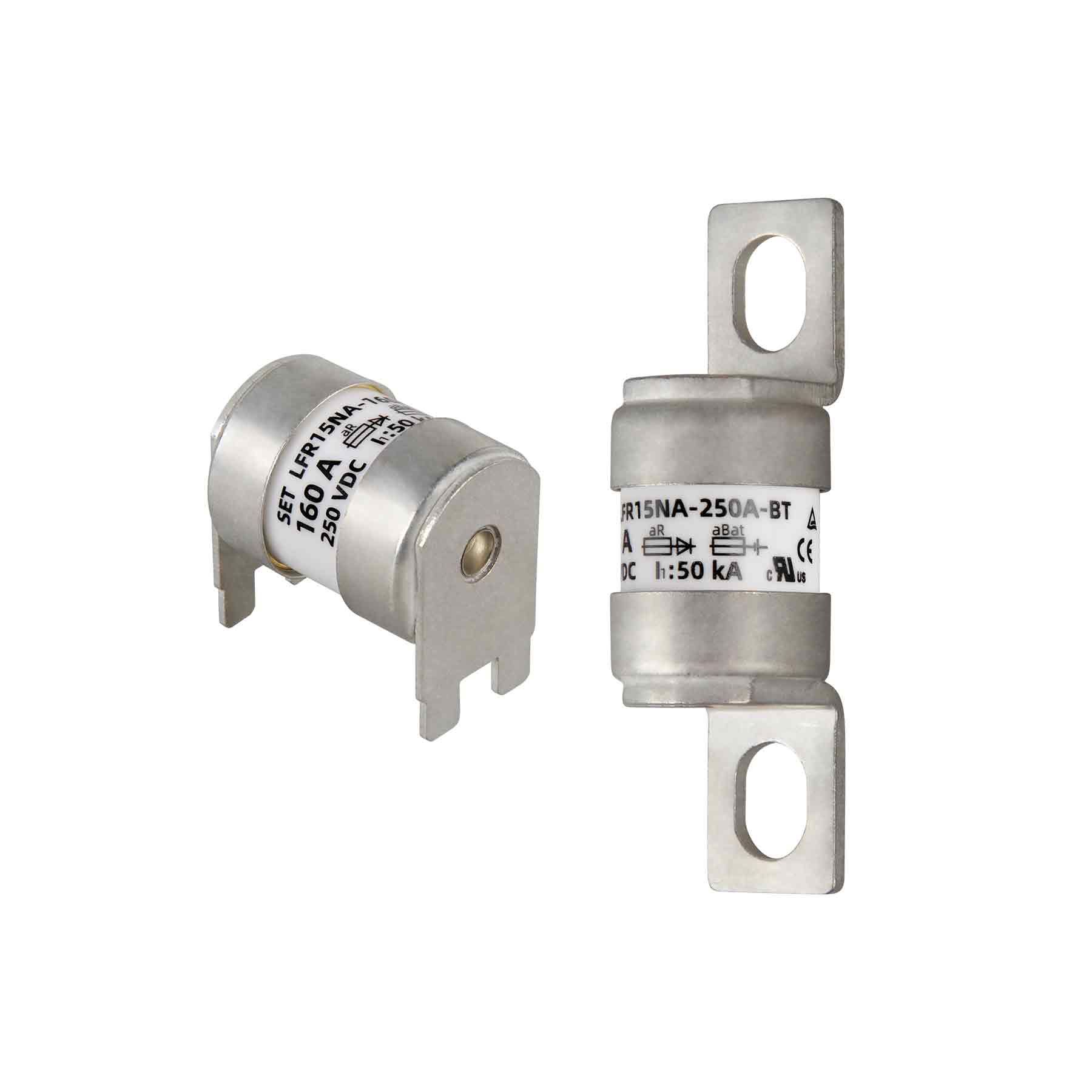

LFR15NA-xA-y series×

LFR15NA-xA-y series

Rated Voltage (Un): 150 VDC, 250 VDC

Rated Current (In): 300 ~ 400 A / 150 VDC, 32 ~ 250 A / 250 VDC

Breaking Capacity (I1): 50 kA

Utilization Category: aR & aBat

Datasheet
Manufacturer
Features
Mounting Style
Termination Style
Applications
Design Standards & Agency Approvals
Customization
Quality Assurance
Brand
Tradename
Overview
About SETsafe | SETfuse

Datasheet

2024-2026 Year Version.

LV Fuses_LFR15NA-xA-y(150 VDC＆250 VDC, 32 A~400 A)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 150 VDC, 250 VDC

● Breaking Capacity: 50 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR / aBat

● Good Current Limiting Capability

● Body Size: Ф17.5 x 26 mm (BT), Ф17.5 x 23.8 mm (PT2)

● RoHS and REACH Compliant, Pb Free

Mounting Style

Bolt Tag, PCB Mount.

Termination Style

Bolt Down, Through Hole.

Applications

● Inverter

● Semiconductor Equipment

● Energy Storage System (ESS)

● BBU

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL (America):

Standards: UL 248-13

File No.: E532248

UL_LFR15NA-xA-y_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: UL 248-13

File No.: E532248

cUL_LFR15NA-xA-y_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: IEC 60269-7

File No.: R 50718141

TUV_LFR15NA-xA-y_SETsafe & SETfuse.pdf

CE (EU):

Standards: IEC 60269-7

File No.: AN 50718141

CE_LFR15NA-xA-y_SETsafe & SETfuse.pdf

Customization

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

Quality Assurance

High Quality, High Reliability.

Brand

SETsafe | SETfuse

Tradename

SET

Overview

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.
