LV Fuses for EV Charging
  • LV Fuses for EV Charging
  • LFR15-xxxA06-BT series×

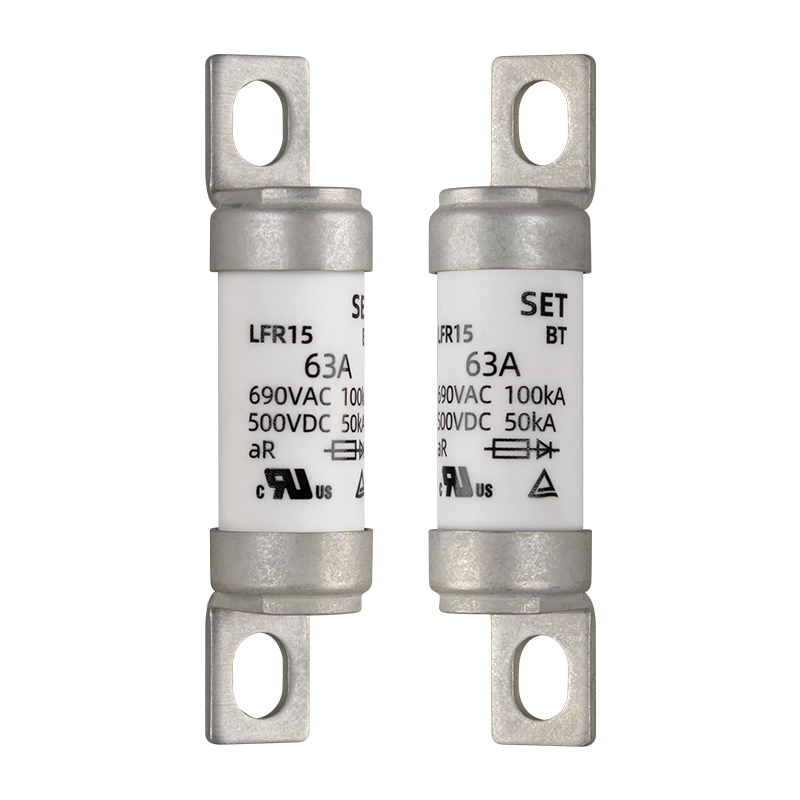

LFR15-xxxA06-BT series

Rated Voltage (Un): 690 VAC / 500 VDC

Rated Current (In): 32 ~ 100 A

Breaking Capacity: 100 kA @ 690 VAC / 50 kA @ 500 VDC

Utilization Category: aR

Datasheet

2024-2026 Year Version.

LV Fuses LFR15-xxxA06-BT(500 VDC, 690 VAC, 32~100 A)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 500 VDC / 690 VAC

● Breaking Capacity: 50 kA @ 500 VDC / 100 kA @ 690 VAC

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR

● Good Current Limiting Capability

● Body Size: Ф17.5 x 46 mm

Applications

● DC Common Bus

● DC Drives

● Power Converters / Rectifiers

● Reduced Voltage Starters

● Energy Storage (Household Storage)

● DC Charging Pile

● Power Supply
