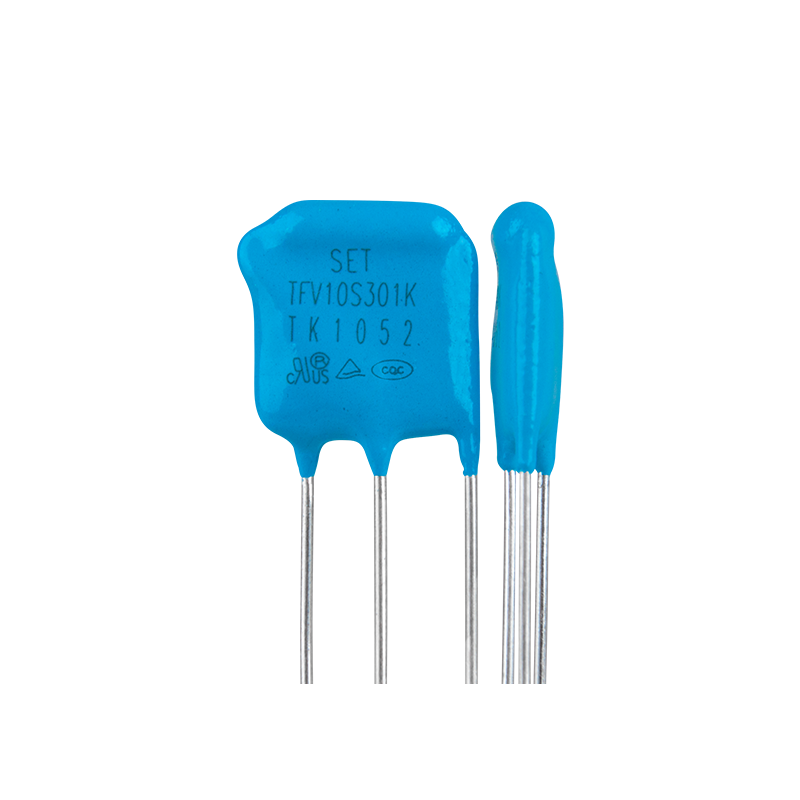

Thermal Fuse Varistor (TFV) is a varistor that incorporates thermal protection. This product possesses all the features of a standard MOV while offering additional thermal safeguards. In cases where an MOV becomes degraded due to long-term operation or abnormal surges, the leakage current of the MOV continues to increase, potentially leading to overheating and even fire. The thermal fuse, consisting of a fusible alloy, within the TFV is highly responsive to abnormal temperatures and triggers an action to disconnect the circuit, thereby preventing the MOV from overheating or catching fire.
Thermal Fuse Varistors (TFV) finds wide application in various fields such as power supplies, industrial equipment, and communication devices that demand high reliability and weather resistance.
SETsafe | SETfuse provides Thermal Fuse Varistors (TFV) with maximum peak current ratings ranging from 5 kA to 10 kA, and maximum continuous voltage ratings from 50 VAC to 510 VAC. These TFVs are equipped with safety certifications such as UL, cUL, TUV, and CQC, and comply with the requirements of RoHS and REACH.
● Patented Product
● Thermal Protection Varistor
● Thermal Protection Elements Are Built In To Save Space
● Three-lead Version Available For Indication Purpose
● Low Leakage
● Operatin Temp. Range:(-40 - 105)°C
● RoHS & REACH Compliant
Through Hole
Radial
Design Standards & Agency Approvals
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
