Thermal Fuse Varistor (TFV)
  • Thermal Fuse Varistor (TFV)
  • TFV15S series×

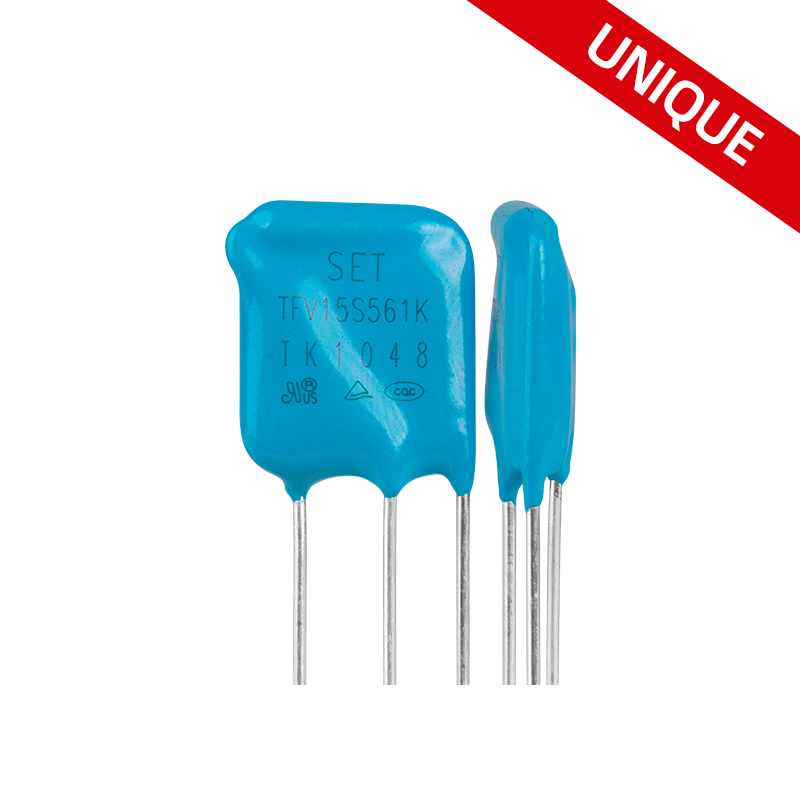

TFV15S series

Max. Continuous a.c. Voltage(vac): 50 ~ 510 V

Max. Peak Current (Imax): 10 kA

Upper Category Temp. (UCT): 105 °C

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TFV 15S_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TFV 15S_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Technology

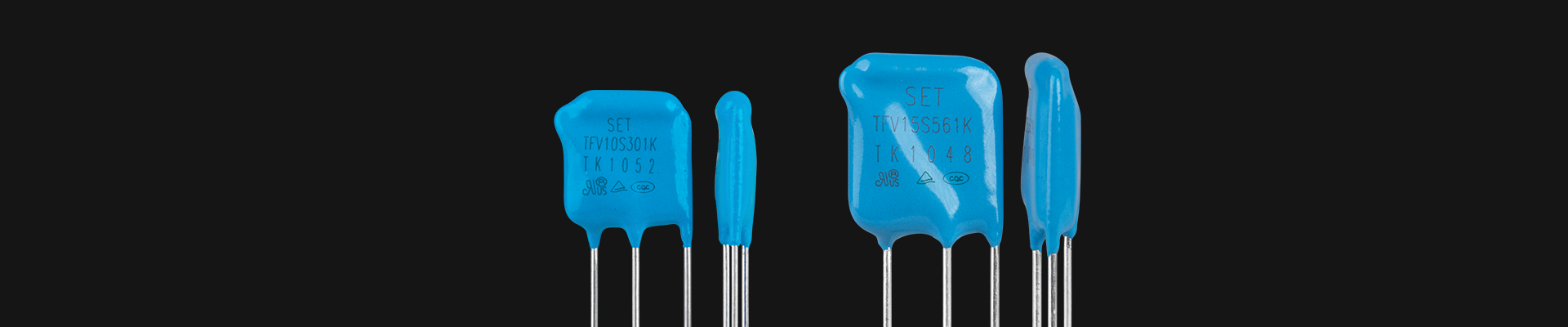

Thermal Fuse Varistor (TFV) is a varistor that incorporates thermal protection. This product possesses all the features of a standard MOV while offering additional thermal safeguards. In cases where an MOV becomes degraded due to long-term operation or abnormal surges, the leakage current of the MOV continues to increase, potentially leading to overheating and even fire. The thermal fuse, consisting of a fusible alloy, within the TFV is highly responsive to abnormal temperatures and triggers an action to disconnect the circuit, thereby preventing the MOV from overheating or catching fire.


Thermal Fuse Varistors (TFV) finds wide application in various fields such as power supplies, industrial equipment, and communication devices that demand high reliability and weather resistance.


SETsafe | SETfuse provides Thermal Fuse Varistors (TFV) with maximum peak current ratings ranging from 5 kA to 10 kA, and maximum continuous voltage ratings from 50 VAC to 510 VAC. These TFVs are equipped with safety certifications such as UL, cUL, TUV, and CQC, and comply with the requirements of RoHS and REACH.

Features

● Patented Product

● Thermal Protection Varistor

● Thermal Protection Elements Are Built In To Save Space

● Three-lead Version Available For Indication Purpose

● Low Leakage

● Operatin Temp. Range:(-40 - 105)°C

● RoHS & REACH Compliant

Mounting Style

Through Hole

Applications

● Power Supplies

● Home Electrical Appliances

● Industrial Devices

● Surge Protectors

● Telecom Devices

Technology Applications Markets Applications

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


UL (America):

Standards: UL 1449 4th Edition

File No.: E322662

UL_MOV_SETsafe & SETfuse.pdf


cUL (Canada):

Standards: CSA C22.2 No.269.5-17

File No.: E322662

cUL_MOV_SETsafe & SETfuse.pdf


TUV (Germany):

Standards: EN IEC 61051-1:2018 / IEC 61051-2: 1991+A1 / IEC 61051-2-2:1991 / Annex G.8.1 of IEC 62368-1:2018

File No.: J 50554143

TUV_TFV_ TFV15S _SETsafe & SETfuse.pdf


CQC (China):

Standards: GB/T 10193-1997 / GB/T 10194-1997 / GB 4943.1-2011/ GB 8898-2011

File No.: On-going

Quality Assurance

TFV Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.


Quality Policy.


Qualified Supplier of Raw Materials.


Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..


Process:

Online Inspection and Function Test 100%, etc..


In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..


Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..


Reliability Test:

AQL Sampling Test.


Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..


Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..


Quality Management System:

TUV Approved and Issued Certificate.
