Thyristor Surge Suppressors (TSS)
  • Thyristor Surge Suppressors (TSS)
  • SIP5024G series×

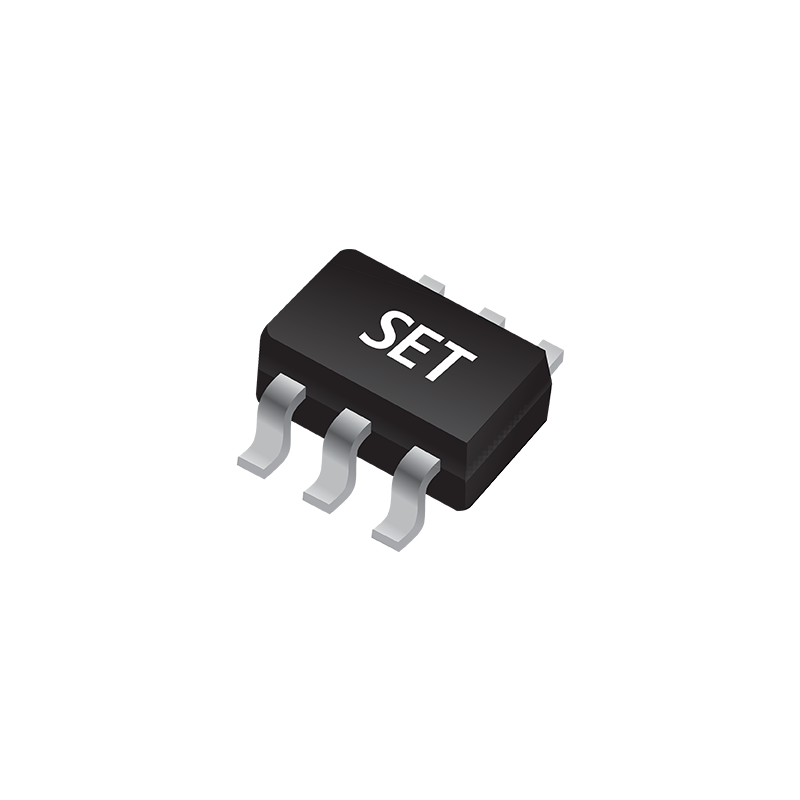

SIP5024G series

Peak off-state Voltage (VDRM):  24 V

Capacitance (CJ): 3.0 PF

Max. Peak Pulse Current (IPP)(8/20 µs): 35 A

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

TSS SIP5024G(SOT23-6)_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

TSS SIP5024G(SOT23-6)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Compact and low profile package

● Low capacitance and leakage current

● Low clamping voltage

● Compatible with VDSL2、ADSL2

● Balanced overvoltage protection

● Response time under 500 ns

● Low insertion loss

● Low distortion

● Moisture sensitivity level: Level 3

● Flammability Rating: UL 94 V-0

● Halogen Free and RoHS Compliant

Mounting Style

Surface Mount

Applications

● VDSL2

● ADSL2

● ADSL2+

Technology Applications Markets Applications

Quality Assurance

TSS Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.


Quality Policy.


Qualified Supplier of Raw Materials.


Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..


Process:

Online Inspection and Function Test 100%, etc..


In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..


Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..


Reliability Test:

AQL Sampling Test.


Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..


Quality Management System:

TUV Approved and Issued Certificate.
