  • SCF632A & SCF632AP series×

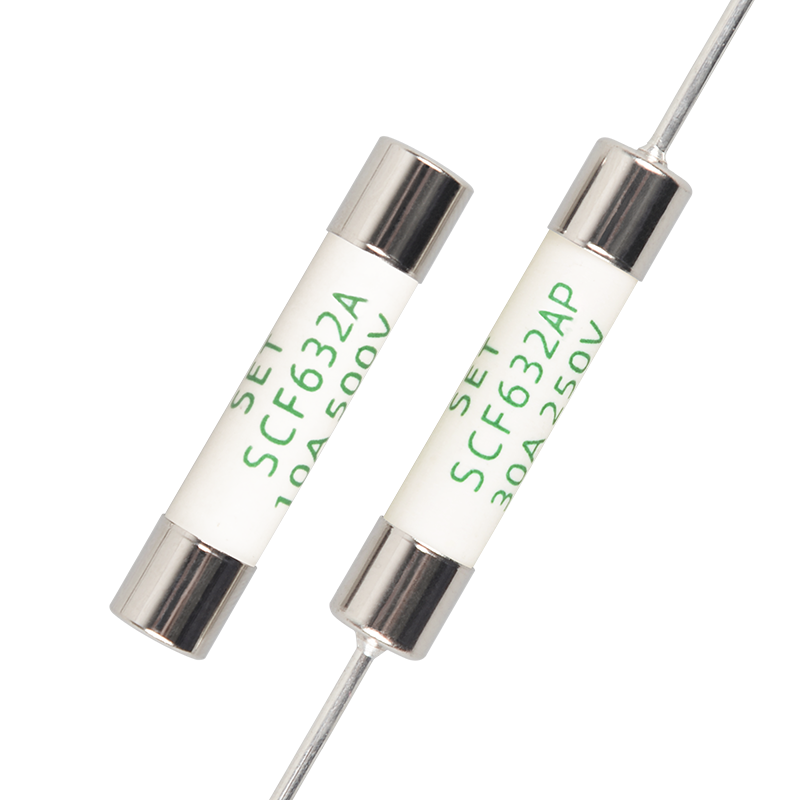

SCF632A & SCF632AP series

Body Materials: Ceramic

Characteristic: High Speed

Rated Current (In): 15 ~ 30 A

Rated Voltage (Un): 250 ~ 500 VAC / 250 ~ 600 VDC

Dimensions: Ф6.35 × 31.8 mm

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

Miniature Fuses_CFL_SCF632A&SCF632AP_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

Mini Fuses_CFL_SCF632A&SCF632AP_EN_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Physical Size: Φ6.35 mm × 31.8 mm

● High Breaking Capacity

● Ceramic Tube Construction

● Low I2t,Quick Break

● Designed TO UL 248-14

● Lead-free (Pb-free)

● RoHS & REACH Compliant

Mounting Style

Holder, Clip, Board Mount

Applications

● Uninterruptible Power Supplies (UPS)

● Three-phase Power Supplies

● Industrial Control Panels

● Motor Protection

● Variable Frequency Drives

● Power Conversion Equipment such as Inverters, Rectifiers, etc.

● Energy Storge and Battery Management Systems

● Charging Pile

Technology Applications Markets Applications

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


UL(America)

Standards: UL 248

File No.: On-going


cUL(Canada)

Standards: UL 248

File No.: On-going

Quality Assurance

CFL Quality Assurance

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.


Quality Policy.


Qualified Supplier of Raw Materials.


Incoming Quality Control (IQC):

Acceptance Quality Limit (AQL), Dimension, Function, Visual Inspection, RoHS & REACH Test. etc..


Process:

Online Inspection and Function Test 100%, etc..


In Process Quality Cortrol (IPQC): AQL, Dimension, Function, Visual Inspection, etc..


Final Quality Control (FQC):

AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test, etc..


Reliability Test:

AQL Sampling Test.


Outgoing Quality Control (OQC):

Packaging, Labeling, Quantity Inspection, etc..


Agency Information:

Safety Certificate Agency Annual, Quarterly Audits. Include UL, cUL, VDE, TUV, KC, PSE, CCC. etc..


Quality Management System:

TUV Approved and Issued Certificate.

Brand

SETsafe | SETfuse


Brand Story.png

Overview

Miniature Fuses is an Over Current Protection device. Its resistance is very low. When the circuit works normally, it is equivalent to a wire, which can conduct the circuit continuously and stably. When the current fluctuates due to circuit instability or external interference, it should also be able to withstand a certain range of overload. Only when overload or short circuit happens, Miniature Fuses can blow fast to protect the circuit.



SETsafe | SETfuse Miniature Fuses is widely used in all kinds of electrical equipment. It has a variety of mounting modes, compact structure, reliable and stable performance. Technical parameters of SETsafe | SETfuse Miniature Fuses: Its rated current ranges from 0.1 A to 40 A, rated voltage ranges from 125 VAC to 500 VAC, and from 24 VDC to 600 VDC, complies with RoHS and REACH, and is approved by cURus, VDE, PSE, CCC, CQC, KC, TUV.
