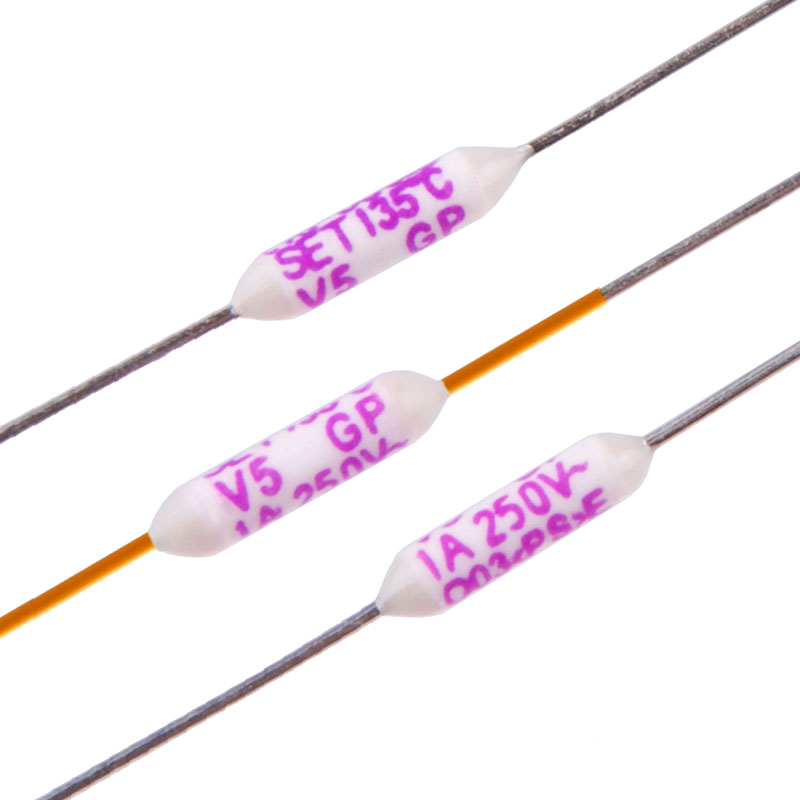

Thermal-Link (ATCO) - Alloy Type
  • Thermal-Link (ATCO) - Alloy Type
  • V series ×
V series

Rated Functioning Temp. (Tf): 76 ~ 221 ℃

Rated Current (Ir): 1 A / 125 VAC, 1 A / 250 VAC, 4 A / 60 VDC

Rated Voltage (Ur): 125 / 250 VAC, 50 / 60 VDC

Datasheet

2024-2026 Year Version.

When purchasing 2024-2026 version products, please refer to the data below. If the product you have been traded in is the 2021-2023 version, but you want the latest updated version of 2024-2026, please consult sales.

ATCO V(Axial)_SETsafe & SETfuse.pdf


2021-2023 Year Version.

While purchasing 2021-2023 version products, please refer to the data below.

ATCO V(Axial)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.
