2024-2026 Year Version.

LV Fuses LFR15XL2(1500 VDC, 100~450 A)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Rated Voltage: 1500 VDC

● Breaking Capacity: 250 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR / aBat

● Good Current Limiting Capability

● Body Size: 125 x 59 x 75 mm (2#)

● RoHS and REACH Compliant, Pb Free

BB: Bolt Blade, FB: Flat Bolt

Bolt down

● Battery Energy Storage System (BESS)

● Power Conversion Systems

● DC Common Bus Systems

● Hybrid PV-BESS Inverters

● Industrial Heaters and Welding Equipment

● Metal Processing Equipment

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL

Standards: UL 248-13

File No.: E532248

UL_LFR15XL2_SETsafe & SETfuse.pdf

cUL

Standards: UL 248-13

File No.: E532248

cUL_LFR15XL2_SETsafe & SETfuse.pdf

TUV

Standards: EN IEC 60269-4

File No.: R 50575022

TUV_LFR15XL2(IEC60269-4  aR)_SETsafe & SETfuse.pdf

TUV

Standards: EN IEC 60269-7

File No.: R 50575074

TUV_LFR15XL2(IEC60269-7 aBat)_SETsafe & SETfuse.pdf

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

High Quality, High Reliability.

SETsafe | SETfuse

SET

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.

Learn more

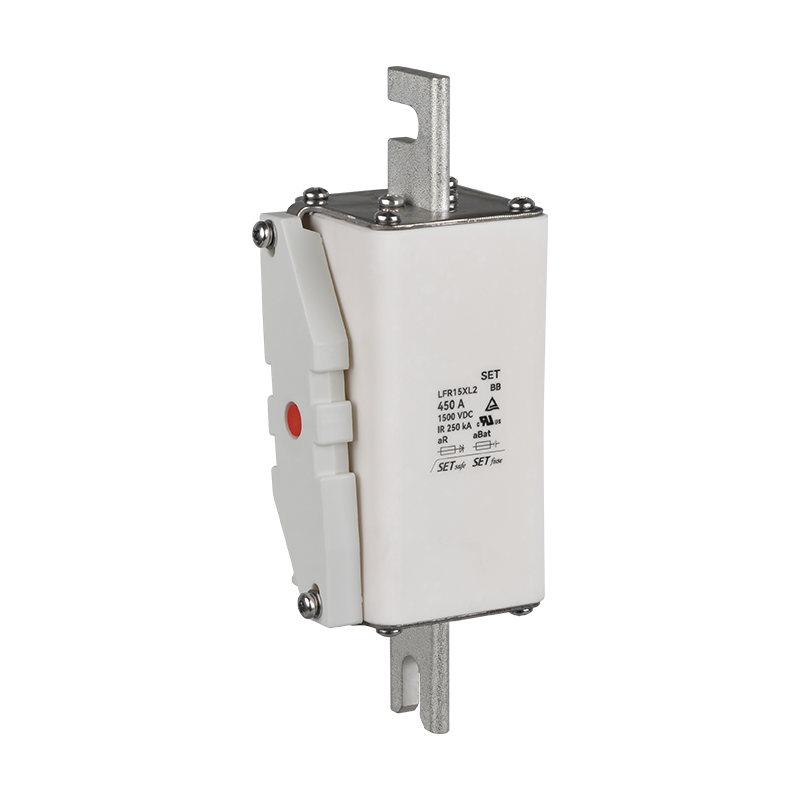

LFR15XL2-xxxxA-xx series
