2024-2026 Year Version.

LV Fuses LFR15XL5(1500 VDC, 1800~3000 A)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Rated Voltage: 1500 VDC

● Breaking Capacity: 250 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR

● Good Current Limiting Capability

● Body Size: 159 x 159 x 178 mm (5#)

● RoHS and REACH Compliant, Pb Free

Flush End

Threaded Socket

● Solar Inverter System

● Energy Storage System (ESS) Converters

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

CCC (China):

Standards: GB/T 13539.4

File No.: 2025010308759660

CCC_LFR15XL5_SETsafe & SETfuse.pdf

UL (America):

Standards: UL 248-13

File No.: E532248

UL_LFR15XL5_SETsafe & SETfuse.pdf

cUL (Canada):

Standards: UL 248-13

File No.: E532248

cUL_LFR15XL5_SETsafe & SETfuse.pdf

TUV (Germany):

Standards: IEC 60269-4

File No.: B 107221 0010

TUV_LFR15XL5_SETsafe & SETfuse.pdf

CE (EU):

Standards: IEC 60269-4

File No.: N8A 107221 0011

CE_LFR15XL5_SETsafe & SETfuse.pdf

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

High Quality, High Reliability.

SETsafe | SETfuse

SET

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.

Learn more

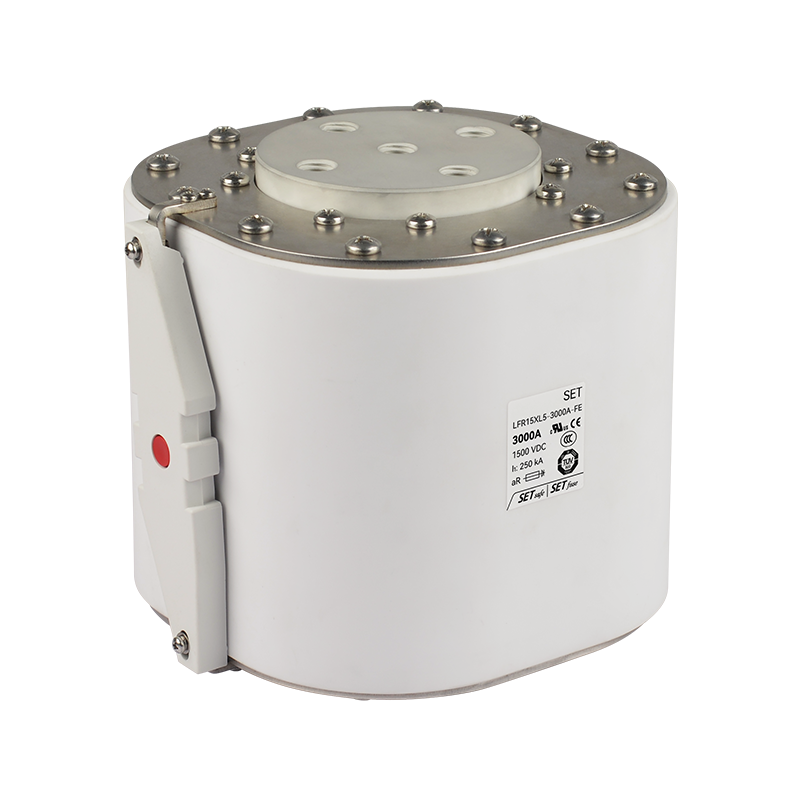

LFR15XL5-xxxxA-FE series
