2024-2026 Year Version.

LV Fuses_LFR20S-XXXA-BT(150 VDC＆250 VAC, 32~250 A)_SETsafe & SETfuse.pdf

Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Xiamen SET Electronics Co., Ltd.

● Rated Voltage: 150 VDC / 250 VAC

● Breaking Capacity: 50 kA @ 150 VDC / 100 kA @ 250 VAC

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR / aBat

● Good Current Limiting Capability

● Body Size: Ф23.5 x 29.5 mm

● RoHS and REACH Compliant, Pb Free

Bolt Tag

Bolt down

● Inverter

● Rectifier

● Power Supply

● Semiconductor Equipment

● Energy Storage System (ESS)

● Power Battery System

● DC Charging Pile

● Cable

● Vehicle Equipment

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com

UL

Standards: UL 248-13

File No.: E532248

UL_LFR20S_SETsafe & SETfuse.pdf

cUL

Standards: UL 248-13

File No.: E532248

cUL_LFR20S_SETsafe & SETfuse.pdf

TUV

Standards: EN IEC 60269-7

File No.: R 50592470

TUV_LFR20S_SETsafe & SETfuse.pdf

If you want to customize the product, please communicate with SETsafe ｜SETfuse.

High Quality, High Reliability.

SETsafe | SETfuse

SET

A low-voltage fuse is an overcurrent protection device designed for low-voltage electrical systems (typically defined as less than 1000 VAC or 1500 VDC). Its primary function is to interrupt fault currents during an overload or short-circuit event by melting its internal element, thereby preventing equipment damage or fire hazards. They are widely applied in all electrical and electronic systems requiring overcurrent protection, such as industrial power distribution systems, household appliances, automotive electronics, and new energy applications.

Learn more

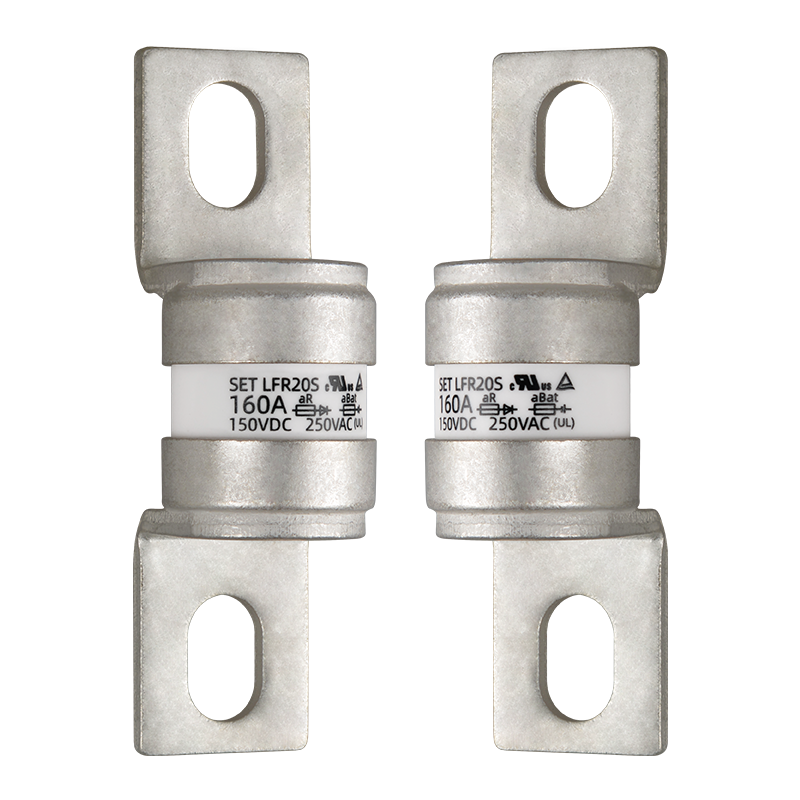

LFR20S-xxxA-BT series
